Best Way to Light Beauty Portraits and Headshots: Clamshell Lighting Tutorial

When it comes to portrait photography, there are countless ways to use light. You can create drama, emphasize texture, tell a story, or simply make your subject look their best. For beauty portraits and headshots however, there is one setup I keep coming back to: clamshell lighting.

What I like about clamshell lighting is that it doesn’t require a complicated studio or a huge collection of equipment. You can build a basic version with natural light and a reflector, or use one, two, or several artificial lights when you need more control. Once you understand the relationship between the key and fill light, you can adapt the setup to create anything from very flat beauty lighting to a more dimensional portrait with noticeable shadows.

In this guide, I’ll show you how clamshell lighting works, why it’s so effective for portraits, how to build it with different types of equipment, and how to adjust the setup to get the look you want.

TL;DR

• Clamshell lighting uses a key light above and in front of your subject, combined with a fill source below the face.
• The setup is especially useful for beauty portraits, headshots, fashion, and commercial photography because it produces soft, controlled, flattering light.
• You don’t need two artificial lights. You can create clamshell lighting with sunlight and a reflector or one artificial light and a reflector.
• For a two-light setup, use the upper light as your key and the lower light as your fill. A 2:1 or 3:1 key-to-fill ratio is a good starting point.
• Large light sources placed relatively close to the subject will generally produce softer, more flattering light.
• Moving the key slightly to one side or asking your subject to turn their face can introduce more depth and definition while retaining the basic clamshell look.
• The stronger your fill, the flatter the portrait will look. Reducing the fill allows more facial definition and contrast.
• You don’t need to follow a lighting diagram perfectly. Treat clamshell lighting as a starting point and adjust the position and intensity of your lights based on the face in front of you.
• Good lighting should make post-production easier, not compensate for a poorly positioned light. Get the lighting right before relying on retouching.

Affiliate Disclosure: This post contains affiliate links. If you make a purchase through them, I may earn a commission at no additional cost to you. I only recommend products and services that I believe provide real value. Here’s the full list of my recommended gear and tools.

What Is Clamshell Lighting?

Clamshell lighting is a portrait lighting setup where the subject is illuminated primarily from the front by two light sources: one positioned above the face and another positioned below it.

The upper light is your key light. It provides the main illumination and is usually placed slightly above the subject’s eye level, pointing downward toward the face. The lower light acts as fill, sending light upward to reduce the shadows created by the key.

The two lights don’t necessarily need to be identical, and they don’t need to produce the same amount of light. In fact, changing the balance between them is one of the easiest ways to change the character of the portrait.

You also don’t necessarily need two artificial lights.

A reflector can replace the lower light by bouncing some of the key light back toward the subject. This makes it possible to create a simple clamshell setup with just one light source, or even with natural sunlight.

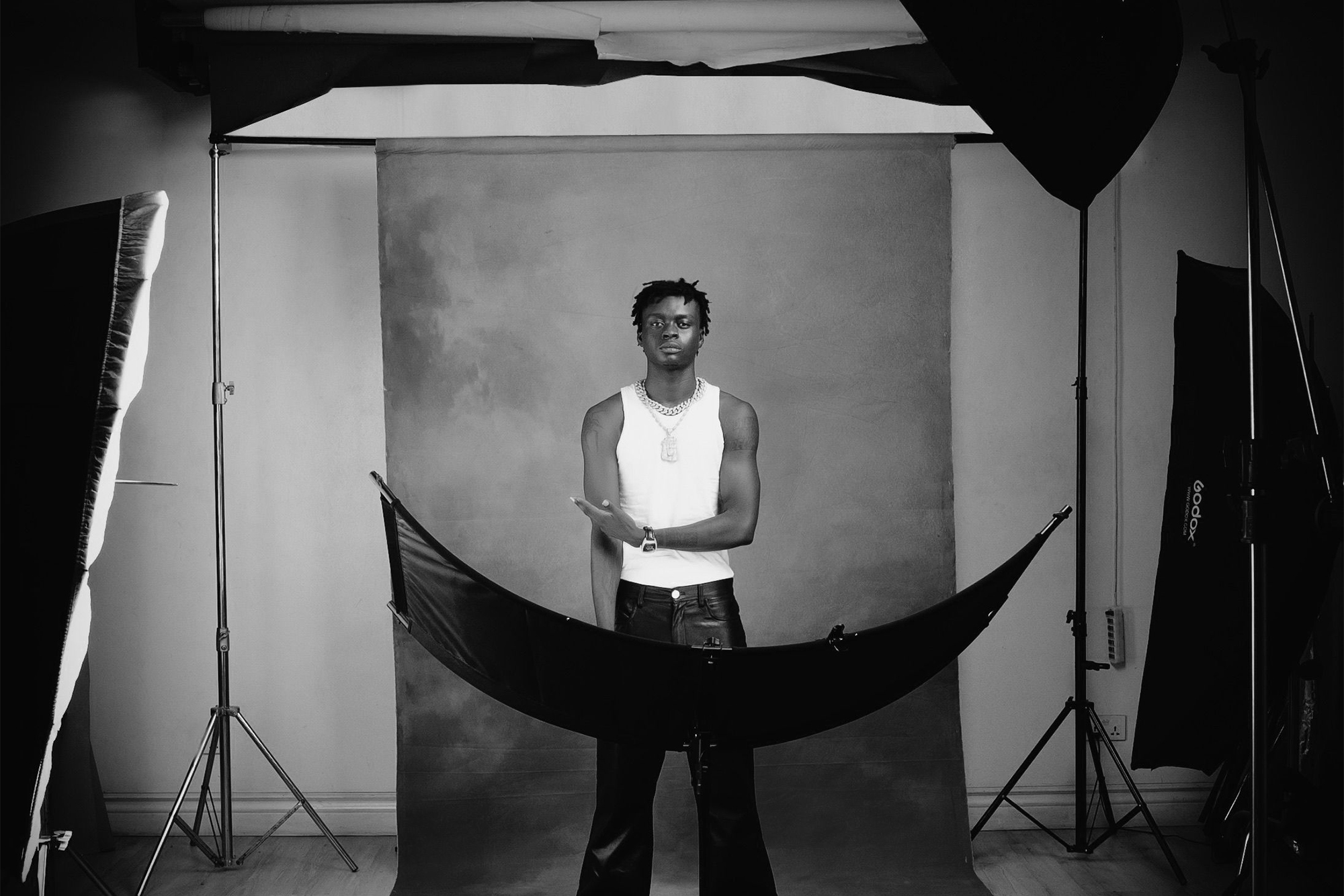

The Basic Clamshell Position

In the classic version of the setup, both light sources are placed close to the centerline of the subject.

The key light sits above the face and points downward. The fill source sits below the face and points upward. From the side, the two sources create a shape that resembles an open clamshell, with the subject’s face sitting between them.

The exact height, angle, distance, and intensity aren’t fixed. Those variables are what allow you to adapt the setup to different subjects and different styles.

For a traditional beauty look, I’d start with both sources relatively close to the subject and as large and soft as your space allows. From there, you can adjust the position and ratio to introduce more or less shadow.

Why Is It Called Clamshell Lighting?

The name comes from the physical arrangement of the two light sources.

If you look at a typical clamshell setup from the side, the upper and lower lights resemble the two halves of an open clamshell surrounding the subject.

It’s a simple name, but it gives you a useful mental picture of the setup. One light comes from above and the other comes from below, creating a controlled lighting pattern around the face.

More importantly, you don’t need to reproduce one exact diagram to create clamshell lighting. The principle is what matters: a frontal key light from above combined with controlled fill from below.

Why Clamshell Lighting Works

The main reason clamshell lighting works so well for beauty portraits is that it gives you a lot of control over facial shadows without requiring complicated lighting.

Your key light illuminates the face from above, creating the highlights and shadows that give the face shape. Depending on its position, you’ll typically see some shadow underneath the nose, chin, and other features.

The lower fill then sends light back into those shadows.

If the fill is relatively strong, the shadows become very subtle and the portrait takes on a clean, bright, flattering appearance. If the fill is weaker, more of the original shadow remains and the face has greater definition and contrast.

This is what makes the setup so flexible. You’re not simply choosing between “flat” and “dramatic” lighting. You can move gradually between the two by changing the position and intensity of your fill.

You should also read: How to Create Light Streak Portraits with Shutter Drag (Step-by-Step Guide)

The Characteristic Catchlights

Clamshell lighting can also produce beautiful catchlights in the subject’s eyes, particularly when you’re using large light sources close to the face.

The exact shape of those catchlights will depend on your modifier and its position, but they can add a noticeable sense of life to a close-up portrait.

The large, soft sources commonly used for this setup also create gradual transitions between highlights and shadows. That’s particularly useful for beauty work, where harsh transitions can be distracting and difficult to control.

What Kind of Portraits Can You Get With Clamshell Lighting?

Clamshell lighting is particularly useful when you want a portrait to feel clean, flattering, controlled, and polished.

It’s a natural fit for beauty photography and headshots, but you can adapt it to many other types of portrait work as well. The final appearance depends heavily on the size and position of your lights, the ratio between key and fill, the subject’s position, and how you process the image afterward.

With a large key light and relatively strong fill, you can create very soft, bright portraits with minimal visible shadow. Reduce the fill or move the key farther to one side, and you can introduce more dimensionality while keeping the basic clamshell relationship.

That’s one of the reasons I like this setup. It gives you a reliable starting point without locking you into one particular look.

Here are a couple of portraits I’ve taken using this exact setup:

What You’ll Need

Essential gear:

• Camera
• Off camera flash + trigger and/or constant light and/or larger reflector

Nice to have gear:

• Tripod
• Large modifiers
• Extra lights
• Paper or fabric background (simple design)

What I used for these examples:

• Sony A7IV
• Sigma 24-70 f2.8
• Godox AD600pro (new version)
• Godox AD200pro
• Godox T1 trigger for sony
• Godox UB-165D Umbrella
• Godox 35x160cm stripbox
• Godox 5in1 reflector
• Vanguard tripod
• Godox light stand
• Reflector holder
• Kupo c-stand with boom arm (CT-40MK)
• Fabric background

How to Set Up Clamshell Lighting

There are many ways to build a clamshell setup depending on the equipment you have and the look you’re trying to create. The basic principle stays the same: your main light comes from above and in front of the subject, while another source or reflector fills the shadows from below.

The size of your light sources matters quite a bit here. For beauty portraits, I generally prefer large modifiers placed relatively close to the subject because they produce softer transitions across the face. I also leave barely enough space for the camera to go in between the two lights.

You can use smaller sources or put them farther apart. But know in advance that doing so will change the classic clamshell look quite a bit.

Let’s look at a few practical ways to build the setup.

Clamshell Lighting With Sunlight

You don’t need artificial lights to try clamshell lighting.

If you’re working outdoors or near a large window, you can use sunlight as your key light and a reflector as your fill. Position your subject so the sunlight reaches their face from above and in front, then place a white reflector below their face to bounce some of that light back upward.

I’d recommend starting with a white reflector rather than silver or gold. White produces a softer and more subtle fill, which is usually what you want for this type of portrait.

If the sunlight is too harsh, a large diffuser can be placed between the sun and your subject. This effectively turns the sun into a much larger, softer light source and makes the setup considerably easier to control.

The advantage of this approach is that you can create a convincing clamshell look with almost no lighting equipment. The downside is that you’re still dependent on the direction and intensity of the available light.

If you want to go this route and use natural light, you should also read these posts:

How to Use Window Light for Portraits, Products, and Video

Shaping Sunlight: How to Use Reflectors and Scrims

Clamshell Lighting With One Artificial Light

A single artificial light is enough to create a very effective clamshell setup.

In the simplest version, the light becomes your key and a reflector becomes your fill. Place a large softbox or umbrella above and slightly in front of your subject, then position the reflector below the face so that it catches some of the key light and bounces it upward.

This is probably the version I’d recommend most to someone learning the technique. You get the fundamental relationship between key and fill without having to worry about controlling two separate lights.

The reflector also makes the fill naturally responsive to changes in your key light. Move the key closer, change its angle, or increase its power, and the amount of light available for the reflector changes as well.

Here’s an example of clamshell lighting using one artificial light and a reflector:

Note: there are special reflectors called curved reflectors (sometimes even clamshell reflectors) that are made for exactly this purpose. They’re usually much more expensive than regular reflectors and take much more space. But they can wrap the light around the subject’s face perfectly and give you the best possible results.

Clamshell Lighting With Two Lights

Using two artificial lights gives you much more precise control.

Your first light becomes the key, positioned above and in front of the subject. The second sits below the face and acts as the fill. Unlike a reflector, you can control the fill light’s intensity independently, which makes it much easier to adjust the amount of shadow and contrast in the portrait.

For this setup, I’d generally recommend using off-camera flashes, although constant lights work just as well if they provide enough output for your needs. You can also mix the two types if there’s a reason to do so.

Put both lights relatively soft and close to the subject. Start with just the key light and see its effects. Then add the fill light, and adjust its intensity until you get the amount of shadow you want.

Don’t assume that both lights need to have the same power. In fact, having some difference between them gives you much more control over the final image.

A 2:1 or 3:1 key-to-fill ratio can be a useful starting point, but don’t treat those numbers as rules. If you’re after very flat beauty lighting, you might prefer something closer to 1:1. If you want more definition, you can reduce the fill further. (more on this, later.)

Here’s an example of clamshell lighting using two flashes:

If you’re new with flash, you should check out these posts too:

Off-Camera Flash Photography: A Beginner’s Guide to Better Portrait Lighting

TTL vs Manual Flash: Which Mode Should You Use? (Beginner’s Guide)

Flash Trigger Guide: How Off-Camera Flashes Communicate With Your Camera

Clamshell Lighting With Three or Four Lights

Adding more lights doesn’t fundamentally change the clamshell setup. Your first two lights are still responsible for the key and fill. The additional lights simply give you more control over other parts of the image.

For example, a third light can be placed behind the subject as a rim or hair light, helping to separate them from the background. A fourth light can be used to illuminate the background independently.

These additional lights don’t necessarily need to be as soft as your key and fill. A harder source can work perfectly well for a rim light or background light, depending on the look you’re trying to create.

You can also use a reflector instead of a dedicated fill light and use your additional lights for other purposes. In one of my own setups, for example, I used a flash as the key, a reflector as the fill, and another flash to light the background. The background light was hard and controlled to create a circle.

Here’s an example:

The important thing is not to add lights simply because you have them. Start with the key and fill, make that relationship work first, and then add another light only when it solves a specific problem or contributes something to the image.

Choosing the Right Light Position

Once you have the basic clamshell setup working, the next step is learning how to control the look by moving your lights. There isn’t one perfect position that works for every face or every portrait. Small changes can have a surprisingly large effect, especially when you’re working close to the subject.

The easiest way to learn is to start with a simple position and make one change at a time. That way, you can see exactly what each adjustment does.

Start With the Key Light

Place your key light directly in front of the subject and slightly above eye level. Tilt it downward so that the light reaches the face rather than hitting the top of the head.

From there, look at the shadows underneath the nose and chin.

If the key is too high, the eye sockets can become noticeably darker and the shadows under the nose and chin can become too pronounced. If it’s too low, the light becomes flatter and you may lose the characteristic downward direction that gives clamshell lighting its shape.

The exact position will depend on your subject’s face and the look you’re after, so don’t be afraid to make small adjustments.

Bring Large Light Sources Close

For beauty portraits, I generally prefer bringing a large modifier relatively close to the subject.

A large source close to the face produces softer transitions between highlights and shadows. It also gives you more control over how the light wraps around the subject.

This is one of the situations where the size of the light source relative to the subject matters more than its absolute size. A large softbox placed several meters away may produce harder-looking light than a much smaller source positioned very close.

Of course, you still need enough room to compose your photograph and keep the modifier out of frame. The goal isn’t to put the light as close as physically possible. It’s to find the closest practical position that gives you the quality of light you want.

If you want to learn more about the quality of light, read this guide on basics of lighting for photography and video.

Position the Fill Under the Face

The lower light or reflector should sit in front of the subject and below their face, angled upward.

The easiest way to position it is to watch the shadows rather than trying to copy an exact diagram.

Move the fill closer until you can clearly see it reducing the shadows created by the key. Then adjust its height and angle until the result looks natural.

If you’re using a reflector, you can also make surprisingly small changes to its angle to control how much light reaches the face.

Change the Angle for More Definition

The classic clamshell position is relatively frontal, but you don’t have to keep your subject perfectly square to the camera.

Ask your subject to turn their head slightly to one side. The relationship between the face and the light changes, creating more visible shadow on one side while retaining the soft fill from below.

This is one of my favorite ways to introduce some dimensionality without abandoning the basic clamshell setup. As you can probably tell from the examples I’ve shared thus far.

You can also move the key slightly off-center. The farther you move it toward one side, the more directional the lighting becomes.

At some point, it will stop looking like traditional clamshell lighting altogether. That’s fine. The goal isn’t to obey the diagram; but to understand the lighting relationship well enough to adapt it to the photograph.

Watch the Catchlights

The subject’s eyes are one of the easiest places to see whether your lights are positioned the way you want.

Large light sources positioned close to the subject will usually create noticeable catchlights. Their shape and position can tell you where the light is coming from.

If the catchlights are too high, too low, or simply don’t look right for the style you’re after, adjust the light rather than trying to fix everything in post-production.

For close-up beauty portraits in particular, catchlights can become an important part of the final image.

Make Small Changes

One of the easiest mistakes to make with lighting is changing too many things at once.

Add lighting elements one by one to see each of their effects. If the portrait doesn’t look right, don’t immediately move both lights, change their power, change the camera settings, and ask your subject to move. Change one variable at a time.

Move the key slightly. Take a frame. Move the fill. Take another. Change the subject’s angle. Take another.

After a few sessions, you’ll start developing an intuition for how these small changes affect the face. That’s much more valuable than memorizing a single “correct” clamshell diagram.

You should also read: Natural Light vs Flash Photography: Which Is Better (and When to Use Each)

Understanding Key-to-Fill Ratios

The relationship between your key and fill determines how much shadow remains on your subject’s face.

The key light provides the main illumination, while the fill controls how much of those shadows are reduced. More fill creates flatter, softer lighting; less fill gives you more contrast and facial definition.

1:1 Ratio

The key and fill provide roughly the same amount of light, producing very flat illumination with minimal shadow. This can work for clean beauty and commercial portraits. But I rarely use it myself.

2:1 Ratio

The key is about twice as bright as the fill. This leaves some shadow while keeping the overall look soft and flattering. It’s a good starting point for traditional clamshell lighting.

3:1 Ratio

The key is about three times as bright as the fill, giving you more visible shadows and facial definition while retaining the soft quality of the setup.

Don’t Treat Ratios as Rules

These numbers are just starting points. Your subject, modifiers, light positions, and desired look all affect the result.

If the portrait looks too flat, reduce the fill. If the shadows are too strong, increase it. You can also change the apparent fill simply by moving a reflector or light closer or farther away.

And remember: lighting position matters just as much as lighting ratio. Turning the subject or moving the key slightly off-center can introduce more definition without changing the power of either light.

Clamshell Lighting Variations

Once you understand the basic setup, you don’t need to treat clamshell lighting as a fixed formula. The classic arrangement is simply a starting point. By changing the position of the subject, the angle of the lights, or the balance between key and fill, you can create very different portraits while keeping the same basic lighting idea.

Classic Straight-On Clamshell

The most traditional version has your subject facing the camera and both lights positioned close to the centerline of their face.

This produces the cleanest and most symmetrical result. With a large soft key and relatively strong fill, the face can look very smooth and evenly illuminated, which is why this version is so popular for beauty and commercial portraits.

It’s also the easiest version to start with because the lighting relationship is simple and predictable.

Turn the Subject Slightly

You don’t need to keep your subject completely square to the camera.

Ask them to turn their head slightly to one side while keeping the lights roughly where they were. This changes the angle at which the key reaches the face and introduces more visible shadow on one side.

The result can feel considerably more dimensional while retaining the soft, flattering quality of the clamshell setup.

This is one of the simplest adjustments you can make when a straight-on portrait feels too flat.

Move the Key Off-Center

You can also create more direction by moving the key light slightly to one side.

The farther you move it from the centerline, the more the lighting begins to resemble a conventional directional portrait setup. The fill from below can still soften the shadows, so you get some of the dimensionality of side lighting without completely losing the characteristics of clamshell lighting.

This is particularly useful when you’re photographing a subject whose facial features benefit from a little more definition.

Reduce the Fill

Another way to introduce more shadow is simply to reduce the intensity of your fill.

With very strong fill, the face can become extremely flat. Lowering the fill allows the key to create more visible shadows underneath the nose, chin, and around the contours of the face.

This can be useful when you want a portrait that feels less polished and more dramatic.

Just remember that reducing the fill changes the fundamental character of the setup. At some point, you’re essentially using a single directional key with a small amount of fill rather than traditional flat clamshell lighting.

Change the Height of the Key

The height of your key light is another easy way to change the look.

Lowering it creates a flatter, more frontal appearance. Raising it increases the downward direction of the light and can make the shadows underneath the eyes, nose, and chin more noticeable.

You don’t need to make dramatic changes. A few centimeters can be enough to noticeably change the shape of the shadows, especially when the light is close to the subject.

Experiment With the Fill Position

The lower light doesn’t always have to sit in exactly the same position.

Try moving your reflector or fill light closer and farther away, changing its angle, or raising and lowering it slightly. You’ll see the shadows on the face change even when your key light remains completely unchanged.

This is a useful exercise because it teaches you to think of the fill as a shadow-control tool, rather than simply another light that makes the subject brighter.

Use Clamshell as a Starting Point

Eventually, you may find yourself moving the lights far enough that the setup no longer resembles a textbook clamshell. That’s completely fine.

The value of learning a lighting pattern isn’t being able to reproduce a diagram perfectly. It’s understanding what each light is doing and knowing which part of the setup you can change to get a different result; the result you want.

Once you understand that the upper light creates the shape and the lower source controls the shadows, you can experiment freely without losing control of the image.

You should also read: 5 Lighting Mistakes Beginner Photographers Make

Common Mistakes and How to Fix Them

Clamshell lighting is relatively simple to set up, but small changes in the position, size, and intensity of your lights can make a big difference. If your first attempts don’t look the way you expected, don’t immediately assume that you need more equipment. In most cases, the solution is simply to adjust the relationship between your subject and the lights.

1. The Key Light Is Too High

If the key light is positioned too high, the shadows underneath the eyes and nose can become too pronounced. The face may still be well exposed, but the eyes can start to look dark and tired.

Try lowering the key slightly and watch what happens to the shadows. You want enough downward direction to give the face shape without creating deep shadows in the eye sockets.

2. The Fill Light Is Too Strong

One of the easiest ways to make clamshell lighting look overly flat or just plain off-looking, is to use too much fill.

If the lower light completely removes the shadows created by the key, the face can lose much of its dimensionality. That can be exactly what you want for certain beauty or commercial images, but it isn’t always desirable.

Try reducing the power of the fill or moving it farther away. If you’re using a reflector, change its distance or angle to reduce the amount of light being bounced back toward the subject.

Remember: fill light should never be brighter than your intended key light.

3. The Fill Light Is Too Weak

The opposite problem can happen as well. If your fill isn’t contributing enough, the shadows underneath the chin and nose can become much stronger than you intended.

This doesn’t necessarily mean you’ve created a bad photograph, but the result may no longer have the clean, soft quality you’re expecting from clamshell lighting.

Bring the reflector or fill light closer, increase its intensity, or adjust its angle so that more of the key light reaches the subject from below.

4. The Key Light Is Too Far Away

Large light sources are one of the reasons clamshell lighting works so well for beauty portraits. If you move your modifier too far away, it becomes smaller relative to your subject and the light becomes harder.

Whenever possible, bring a large modifier reasonably close to the subject while keeping it outside the frame. You’ll generally get softer transitions between highlights and shadows and more forgiving light across the skin.

You don’t need to put the modifier as close as physically possible. Just find the closest practical position that gives you the quality of light you’re looking for.

5. The Reflector Is Too Low

If your reflector is sitting too low, it may not bounce enough light back toward the face to make a meaningful difference.

Raise it until you can clearly see its effect on the shadows underneath the chin and nose. You can also change its angle to control how much light it reflects.

Be careful not to bring it so high that it becomes visible in the frame or creates an uncomfortable position for your subject.

6. The Lights Are Too Far to the Sides

Traditional clamshell lighting is relatively frontal. If you move the key and fill too far toward the sides, the setup becomes increasingly directional and starts behaving more like conventional side lighting.

That’s not necessarily a problem. In fact, it can be a great way to introduce more drama while keeping some of the softness of the original setup.

But if you’re trying to achieve the classic clamshell look, keep both sources relatively close to the centerline of your subject.

7. The Subject Is Moving Too Much

Small changes in your subject’s head position can have a surprisingly large effect on clamshell lighting.

Ask your subject to make relatively small movements, particularly during close-up beauty portraits. If they turn their face significantly to one side, the relationship between their face and the key light changes, and the shadows may no longer fall where you expect.

If you want a more dramatic head angle, move the light or adjust its position rather than assuming the original setup will work from every direction.

8. You’re Changing Too Many Things at Once

This is probably the most important troubleshooting tip.

If something doesn’t look right, don’t immediately change the key power, fill power, camera settings, modifier position, and subject position at the same time. You’ll have no idea which change actually improved or worsened the photograph.

Instead, change one thing at a time.

Move the key slightly and take a frame. Then adjust the fill and take another. Then change the subject’s position.

After a few sessions, you’ll develop an intuition for how each adjustment affects the face. That’s far more useful than memorizing a single “correct” clamshell lighting diagram.

Editing Portraits Taken With Clamshell Lighting

Good lighting should make your editing easier, not force you to rescue the photograph afterward. When your exposure, white balance, and lighting are under control, clamshell portraits usually give you a clean starting point for post-production.

Because this setup is particularly common in beauty and headshot photography, retouching can become an important part of the process. The amount you do, however, depends entirely on the type of portrait you’re creating.

Start With the Basic Adjustments

Before retouching skin, get the overall image where you want it.

Adjust the exposure, contrast, highlights and shadows, white balance, and overall color. If you’re shooting RAW (as you should), you have plenty of flexibility to make these changes without significantly degrading the image.

I generally prefer getting the global adjustments right first. There’s little point spending time retouching skin if you later decide that the entire image needs a significant exposure or color correction.

I usually do this part in Adobe Camera Raw or Skylum Luminar.

Retouch Skin Carefully

Clamshell lighting is already relatively flattering, so you may not need as much retouching as you might expect. Especially if you had a make up artist work on your subject before taking the photos.

Start by removing temporary distractions rather than trying to eliminate every natural characteristic of the person’s skin. Small blemishes, stray hairs, or temporary marks can be cleaned up with healing and patching tools.

Be careful with excessive smoothing. Skin texture is part of what makes a portrait feel real, and removing too much of it can quickly make the image look artificial.

Use Specialized Retouching Tools When Appropriate

For the last couple of years, I’ve been using Skylum Aperty for much of my portrait retouching. Its presets can provide a useful starting point, and you can then adjust the individual settings to get closer to the look you want.

You don’t need specialized software to edit a clamshell portrait, though. The important part is understanding what you’re trying to change. The software is simply the tool you use to get there.

Don’t Try to Fix Bad Lighting in Post

This is particularly important with beauty photography.

If the key light is creating deep shadows under the eyes, the fill is too strong, or the face is unevenly illuminated, it’s usually better to fix the lighting and take another photograph than to try to correct everything afterward.

Post-production can refine a good lighting setup. But it shouldn’t be your replacement for one.

A well-built clamshell setup will give you a controlled, flattering base that’ll leave you with much less work to do later in post.

When Should You Use Clamshell Lighting?

Clamshell lighting is one of the most useful setups to learn if you regularly photograph faces. It’s flattering, relatively easy to control, and can be adapted to work with anything from a reflector and sunlight to a multi-light studio setup.

But that doesn’t mean it’s the right choice for every portrait.

Beauty Portraits

This is probably the most obvious application.

The combination of a soft key and controlled fill works particularly well for close-up portraits where the face is the main subject. You can keep the lighting very flat and polished, or reduce the fill and introduce more definition while maintaining the basic clamshell look.

It’s especially useful when you want the skin, makeup, and facial features to be clearly visible without harsh shadows distracting from them.

Headshots

Clamshell lighting is also a strong choice for professional headshots.

For corporate or personal-brand portraits, you can use relatively even lighting to create a clean and approachable image. If you want something with more personality, simply introduce some shadow by reducing the fill or changing the angle of the subject.

Because the setup is easy to reproduce, it’s also useful when you need to photograph several people under consistent lighting.

Fashion and Commercial Portraits

The controlled nature of clamshell lighting makes it useful for fashion, beauty, and commercial work as well.

You can use the first two lights to establish the look of the face and then add additional lights for the hair, clothing, or background. This gives you a predictable foundation while still leaving plenty of room to shape the rest of the image.

When You Want a Clean, Flattering Look

You don’t need to be shooting a specific genre to use clamshell lighting.

Sometimes you simply want your subject to look good without creating a dramatic lighting pattern. Clamshell lighting gives you a straightforward way to achieve that.

It’s also a useful setup when you’re working with someone who isn’t experienced in front of a camera. The soft, frontal light is generally forgiving, and you can make small adjustments without completely rebuilding the setup.

When Clamshell Lighting Isn’t the Best Choice

There are also plenty of situations where I’d choose another lighting pattern.

If you’re trying to create a dramatic portrait with deep directional shadows, a side-lit setup will probably give you more to work with. If you’re photographing someone in their environment and want the lighting to contribute to the story, a frontal clamshell setup may feel too controlled.

It’s also not the obvious choice when your goal is to emphasize strong facial texture or deliberately hide parts of the face in shadow.

The point isn’t to find one lighting setup that works for everything. Learn what each setup does, then choose the one that supports the photograph you’re trying to make.

Clamshell lighting is simply one of the most useful options to have ready when you want a clean, controlled, and flattering portrait.

You should also read: Common Exposure Mistakes (and How to Fix Them)

Last Words

Clamshell lighting is one of those setups that’s simple enough for a beginner to learn but flexible enough to remain useful as you become a more experienced photographer.

Start with one large light and a reflector, learn how the key and fill affect the face, and then experiment with different positions and ratios. Once you understand the basic relationship, you can adapt the setup to create anything from very flat beauty lighting to a more dimensional portrait with stronger shadows.

You don’t need to copy a lighting diagram perfectly. Use the setup as a starting point, pay attention to what the light is doing, and adjust it until the photograph looks the way you want.

The more you practice, the less you’ll think about “clamshell lighting” as a specific setup and the more you’ll simply think about controlling light. That is the real skill worth learning.

FAQ
